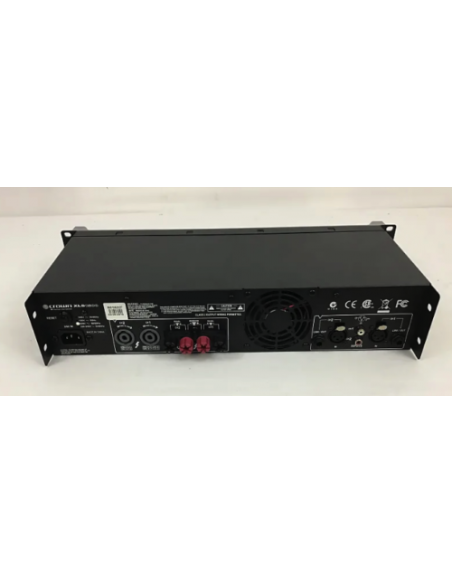

Amplificador Profesional CROWN XLS 1500.
XLS 1500.
Últimas unidades en stock
$241,00
$279,56
-$38,56
Incluye IVA
CROWN XLS 1500 PROFESSIONAL AMPLIFIER Sourced from Corporate Studio refresh Item was previously rack mounted with light use. Some cosmetic marks from removal but otherwise in perfect working condition
Crown XLS 1500 Crown's XLS Series amplifiers define the standard for portable PA systems with unmatched performance, technology and affordability.
Its advantageous flexibility includes multiple inputs so you can plug in anything and play anywhere, along with several system setup configurations. The integrated crossovers and switch-mode power supply produce superior sound, and Peakx limiters protect your speakers. Weighing less than 12 pounds, compared to 40 pounds for its competitors, it's much easier to set up and move from show to show.
Its advantageous flexibility includes multiple inputs so you can plug in anything and play anywhere, along with several system setup configurations. The integrated crossovers and switch-mode power supply produce superior sound, and Peakx limiters protect your speakers. Weighing less than 12 pounds, compared to 40 pounds for its competitors, it's much easier to set up and move from show to show.
Stereo, 2 ohms (per ch.): 775W
Stereo, 4 ohms (per ch.): 525W
Stereo, 8 ohms (per ch.): 300W
Bridge-Mono, 8 ohms: 1050W
Bridge-Mono, 4 ohms : 1550W
Sensitivity (for full rated power at 4 ohms) 1.4 Vrms
Frequency Response (at 1 watt, 20 Hz - 20 kHz) +0dB, -1dB
Signal-to-Noise Ratio Rated as dBr to full rated 8 ohm power output (A-Weighted):
XLS1000 > 97 dB
XLS1500, XLS2000, XLS2500 > 103dB
Damping Factor (8 ohm): 10 Hz to 400 Hz > 200
Crosstalk (below rated 8Ω power) At 1 kHz: > 85dB
At 20kHz: > 55dB
Input Impedance (nominal) 20 kilohms balanced,
10 kilohms unbalanced
Load Impedance 2 to 8 ohms per channel in Stereo
4 to 8 ohms in Bridge Mono
AC Line Voltage and Frequency Configurations
Available (± 10%) 120 VAC 60 Hz
100 VAC 50/60 Hz
220 and 240 VAC 50 Hz
Ventilation Flow-through ventilation from front to back
Cooling Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation
Air Volume Requirements (per minute per unit) 80.15 ft3 (2.27 m3)
Integrated Processing PureBandTM Crossover System
Crossover Filter: Linkwitz-Riley 24dB per Octave
Crossover Frequency Range: 50 Hz - 3 kHz
Crossover Mode: Crossover (CH1=LPF, CH2=HPF), LowPass (both channels LPF), HighPass (both channels HPF), Bridge (LPF or HPF).
PeakxTM limiters: Channels independent clip limiter designed to provide maximum output while protecting your loudspeakers
Input/Output
Input Connectors: XLR (one per channel), 1/4-Inch (one per channel), and RCA (one per channel). 1/4-Inch connectors can be used as loop-thrus to ditribute signal to additional amplifiers.
Output Connectors: Two 4-Pole Speakon® Output Connectors accept 2-pole or 4-pole Speakon® connectors. The top Speakon connector is wired for both channels so it can be used for bridgemono wiring or for stereo wiring of two wpeakers to a single Spekon connector.
Construction XLS1000/XLS1500: 8.12-Inch (20.62cm) depth
XLS2000/XLS2500: 10.35-Inch (26.29cm) depth
Dimensions EIA Standard 19-Inch (48.3-cm) rack mount width (EIA RS-310-B), 3.5-Inch (8.9-cm) height. XLS 1000/1500: 7.7-Inch (19.6-cm) depth. XLS 2000/2500: 10.7-inch (27.2-cm) depth.
Net Weight, Shipping Weight XLS1000: 8.6 lb (3.9kg), 13.6 lb (6.2 kg)
XLS1500: 8.6 lb (3.9kg), 13.6 lb (6.2 kg)
Stereo, 4 ohms (per ch.): 525W
Stereo, 8 ohms (per ch.): 300W
Bridge-Mono, 8 ohms: 1050W
Bridge-Mono, 4 ohms : 1550W
Sensitivity (for full rated power at 4 ohms) 1.4 Vrms
Frequency Response (at 1 watt, 20 Hz - 20 kHz) +0dB, -1dB
Signal-to-Noise Ratio Rated as dBr to full rated 8 ohm power output (A-Weighted):
XLS1000 > 97 dB
XLS1500, XLS2000, XLS2500 > 103dB
Damping Factor (8 ohm): 10 Hz to 400 Hz > 200
Crosstalk (below rated 8Ω power) At 1 kHz: > 85dB
At 20kHz: > 55dB
Input Impedance (nominal) 20 kilohms balanced,
10 kilohms unbalanced
Load Impedance 2 to 8 ohms per channel in Stereo
4 to 8 ohms in Bridge Mono
AC Line Voltage and Frequency Configurations
Available (± 10%) 120 VAC 60 Hz
100 VAC 50/60 Hz
220 and 240 VAC 50 Hz
Ventilation Flow-through ventilation from front to back
Cooling Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation
Air Volume Requirements (per minute per unit) 80.15 ft3 (2.27 m3)
Integrated Processing PureBandTM Crossover System
Crossover Filter: Linkwitz-Riley 24dB per Octave
Crossover Frequency Range: 50 Hz - 3 kHz
Crossover Mode: Crossover (CH1=LPF, CH2=HPF), LowPass (both channels LPF), HighPass (both channels HPF), Bridge (LPF or HPF).
PeakxTM limiters: Channels independent clip limiter designed to provide maximum output while protecting your loudspeakers
Input/Output
Input Connectors: XLR (one per channel), 1/4-Inch (one per channel), and RCA (one per channel). 1/4-Inch connectors can be used as loop-thrus to ditribute signal to additional amplifiers.
Output Connectors: Two 4-Pole Speakon® Output Connectors accept 2-pole or 4-pole Speakon® connectors. The top Speakon connector is wired for both channels so it can be used for bridgemono wiring or for stereo wiring of two wpeakers to a single Spekon connector.
Construction XLS1000/XLS1500: 8.12-Inch (20.62cm) depth
XLS2000/XLS2500: 10.35-Inch (26.29cm) depth
Dimensions EIA Standard 19-Inch (48.3-cm) rack mount width (EIA RS-310-B), 3.5-Inch (8.9-cm) height. XLS 1000/1500: 7.7-Inch (19.6-cm) depth. XLS 2000/2500: 10.7-inch (27.2-cm) depth.
Net Weight, Shipping Weight XLS1000: 8.6 lb (3.9kg), 13.6 lb (6.2 kg)
XLS1500: 8.6 lb (3.9kg), 13.6 lb (6.2 kg)
