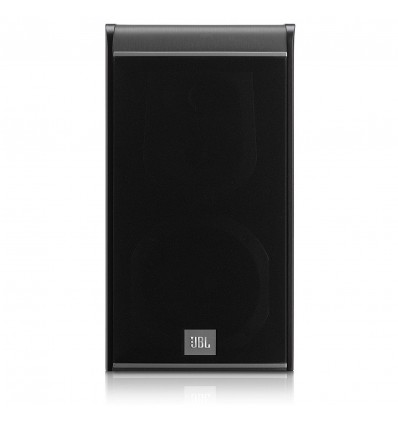

Corneta JBL ES20 5" Expand

Corneta JBL ES20 5" "PAR"

JBL JBL

ES20

Nuevo

  • Ultra-High Frequency (UHF) tweeter expands frequency response up to 40kHz, capableof accurately reproducing high-definition audio
  • A JBL computer-optimized bass-reflex port provides deeper bass and less turbulence
  • The JBL ES Series uses cellulose-fiber cones reinforced with a polymer coating for uniform pistonic motion
  • Waveguide delivers sound evenly over a wide listening area

Más detalles

0,00 Bs

IVA incluído

Entrega estimada en 4 días hábiles

Protección al comprador
¿Necesitas ayuda? (0241) 8253606










ES20


Premium bookshelf speakers featuring 5" PolyPlas woofers and dual tweeters.

The JBL® ES20 is one exceptional speaker that offers convenience in size and dynamics in performance. Each ES20 (they’re sold in pairs) can be mounted on nearly any wall. Featuring 5-inch PolyPlas™ woofers and 3/4-inch tweeters, this speaker offers deep, clear bass and brilliant high-frequency sounds up to 40kHz. Featuring our proprietary Elliptical Oblate Spheroidal™ (EOS) waveguides, the ES20 disperses sound evenly throughout your listening space. Elegantly designed, the ES20 is sure to enhance any room. And it’s magnetically shielded, so you can place it anywhere, and it won’t cause interference on your TV screen.

ES20 at a glance:

  • 25 – 240 watts suggested amplifier range
  • Proprietary 5" PolyPlas low-frequency transducers
  • Dual 3/4" tweeters
  • Proprietary Elliptical Oblate Spheroidal (EOS) waveguides
  • Three-way speaker configuration
  • Straight-Line Signal Path (SSP) design
  • Computer-optimized, bass-reflex port
  • Accurate frequency response
  • Magnetically shielded

VIEW LARGER

Stiff, lightweight PolyPlas transducers, with a rubber surround, reproduce vocals with incredible accuracy and give great bass response

Key Features

25 – 240 watts suggested amplifier range

JBL engineers designed the ES20 loudspeaker to produce precise, exceptional sound from a receiver or amplifier capable of delivering up to 240 watts of power.

Proprietary 5" PolyPlas low-frequency transducers

Stiff, lightweight PolyPlas transducers, with a rubber surround, reproduce vocals with incredible accuracy, give great bass response, create a seamless surround field and minimize distortion even at high volumes. Together, the drivers and surround provide you with an unmatched audio experience.

Dual 3/4" tweeters

The ES20’s high-frequency and ultrahigh-frequency tweeters deliver accurate, undistorted high frequency response, even when the volume is way up. The end result is a full, clear, tight reproduction of high frequencies.

VIEW LARGER

The ES20’s high-frequency and ultrahigh-frequency tweeters deliver accurate, undistorted high frequency response, even when the volume is way up







Elliptical Oblate Spheroidal (EOS) waveguides

The E20’s proprietary EOS waveguide technology delivers precise imaging throughout a listening environment. You get ideally balanced music, crisp dialogue and smooth audio distribution. Every seat will be the best seat in your home theater.

Three-way speaker configuration

Three-way speaker design and quality drivers make for tight, precise bass and midrange reproduction. As a result, the ES20 offers a full range of frequencies and lifelike imaging.

Straight-Line Signal Path (SSP) design

The ideal path from input to components to transducers is a straight line. The ES20 takes that path. Its Straight-Line Signal Path™ (SSP) technology preserves the clarity, detail and dynamics of your favorite audio content.

Computer-optimized, bass reflex port

The ES20’s computer-optimized, bass-reflex port extends deep bass response. It also eliminates unwanted turbulence.

Accurate frequency response

The ES20 doesn’t over-emphasize or under-emphasize any sounds. With a frequency response of 65Hz - 40kHz, the ES20 reproduces a true, full sound range - from deep bass tones to ultrahigh frequencies.

Magnetically shielded

The ES20 produces great, sit-anywhere sound in your room. And you can also put it anywhere, because it’s magnetically shielded for safe placement near your TV or display.

No hay reseñas de clientes en este momento.

Escriba una reseña

Corneta JBL ES20 5" "PAR"

Corneta JBL ES20 5" "PAR"

  • Ultra-High Frequency (UHF) tweeter expands frequency response up to 40kHz, capableof accurately reproducing high-definition audio
  • A JBL computer-optimized bass-reflex port provides deeper bass and less turbulence
  • The JBL ES Series uses cellulose-fiber cones reinforced with a polymer coating for uniform pistonic motion
  • Waveguide delivers sound evenly over a wide listening area
Specifications
Frequency response (–3dB)65Hz – 40kHz
Max. recommended amplifier power125W
Power handling (continuous/peak)60W/240W
Sensitivity (2.83V/1m)86dB
Nominal impedance8 ohms
Crossover frequencies3.3kHz – 24dB/octave; 12kHz – 18dB/octave
Low-frequency transducer(5") PolyPlas™, shielded
High-frequency transducer(3/4") titanium-laminated dome, shielded; EOS waveguide
Ultrahigh-frequency transducer(3/4") polyester film, ring radiator, shielded; EOS waveguide
Dimensions with grille (H x W x D)318mm x 174mm x 203mm
Weight per speaker4.6kg
Rango de frecuencia (-10 dB) 41 Hz-20 kHz
Respuesta de frecuencia (± 3 dB) 55 Hz-20 kHz
patrón de cobertura 70˚ 70˚ × nominal
Sensibilidad (1W / 1m) 96 dB
Régimen de potencia 800 W / 1600 W / 3200 W
(/ Programa / Pico continua)
Calificación Máximo SPL 131 dB SPL pico
Impedancia nominal
Conectores de entrada dos NL4
Modos de funcionamiento Rango completo / Bi-Amp
Dimensiones (H x W x D) 721 mm x 436 mm x 329 mm
(28.4 "x 17.2" x 13.0 ")
Peso neto 26 kg (58 libras)
